The company is a professional new material technology enterprise engaged in R&D, production, sales and recycling of rare metal "germanium" as the core and other advanced high-end infrared optical materials, optical components and other High-Tech materials. Products are widely used in aerospace, solar photovoltaic, infrared field, laser, electronic communications, security camera, automobile, medical treatment, fire protection, industry and other fields. With the help of advanced technology and perfect management system, CNGE has serviced many customers with "full series" industry integration services at home as well as abroad about the advanced and high-end new materials with rare metals as the core.
Multi-spectral zinc sulfide flat sheet is a material with excellent optical properties, its main advantage is that it has a wide range of responsiveness to different wavelengths of light, especially in the ultraviolet, visible and near-infrared region of the excellent performance, widely used in optical sensors, imaging equipment and infrared detection field.This product has average optical properties, strong thermal stability and corrosion resistance, suitable for long-term work in harsh environments.

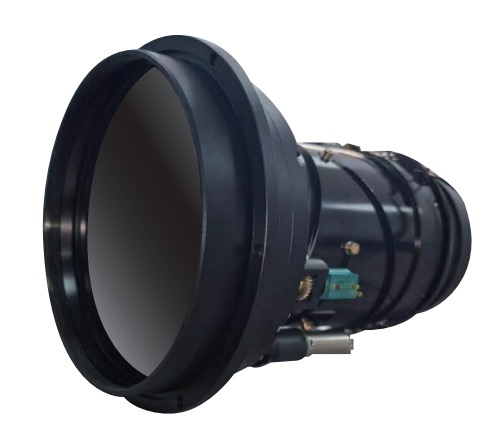

Focusing method: Electric focusing； Focal Length: 25-150mm (6x continuous zoom)； F/#: 0.8/1.2； Spectral Range(μm): 8~12um； DetectorType/size(um): 640*512 (12um)； HFOV/VFOV:(f 25/f 150): 14.9°x 11.2 2.5°x 1.9°(384X288 17um) 24.6x 19.8 /4.2°x3.3°(640X512 17um)； Average Transmission(8~12um): ≥84%(DLC)； Focus Mechanism: Electric focusing; Driving Voltage: DC12V； Weights(kg): 2.15； Dimensions(mm): Ф158xL93； Operating Temperature: -40℃~+60℃; Storage Temperature: -45℃℃~+70℃; Front Lens Sealing: IP67.
